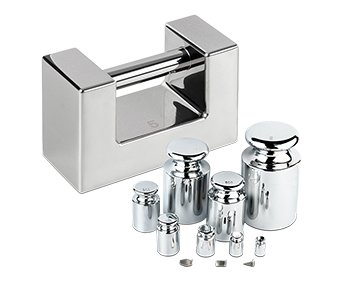

SINGLE WEIGHTS M1 STAINLESS STEEL
|
|
| |
|
|
Example of optional laser marking
|
|
|
|
Stainless steel weights, conforming to OIML-R111 recommendation in class M1, suitable for legal metrology and industrial applications. The M1 accuracy class allows the use of these weights for checking and calibration of scales and instruments in class III up to 10,000e.
Ideal for the verification of weighing instruments in ISO quality regime. | | | LASER MARKING SERVICE UPON REQUEST: |
| | - The laser marking service is useful to identify each weight or mass individually. More specifically:
- Marking allows for easier identification and traceability of each weight or mass;
- It is perfectly smooth, does not remove material from the weight and does not affect the surface, thus avoiding dust deposit;
- It is customisable, according to the requirements of the companies.
In addition:
- It remains unchanged over time;
- It can be performed on previously purchased masses and weights, of all accuracy classes, from 1 g to 20 kg;
- It is perfect for pharmaceutical industries and laboratories.
CALIBRATION SERVICE Below you can see a preview of the calibration certificate. Please pay special attention to point 2. “Required information”, data to be communicated to the laboratory when requesting calibration.
|
|
|
WEIGHTS M1 CLASS
| | Code | Value | Tolerance +/- mg | Density kg/m³ | Shape | Dim. Ø x h mm | Material |
| WAM1M1 | 1 mg | 0,20 | 7950 kg/m3 |  | - | STAINLESS STEEL |
| WAM1M2 | 2 mg | 0,20 | 7950 kg/m3 |  | - | STAINLESS STEEL |
| WAM1M5 | 5 mg | 0,20 | 7950 kg/m3 |  | - | STAINLESS STEEL |
| WAM1M10 | 10 mg | 0,25 | 7950 kg/m3 | | - | STAINLESS STEEL |
| WAM1M20 | 20 mg | 0,3 | 7950 kg/m3 | | - | STAINLESS STEEL |
| WAM1M50 | 50 mg | 0,4 | 7950 kg/m3 | | - | STAINLESS STEEL |
| WAM1M100 | 100 mg | 0,5 | 7950 kg/m3 | | - | STAINLESS STEEL |
| WAM1M200 | 200 mg | 0,6 | 7950 kg/m3 | | - | STAINLESS STEEL |
| WAM1M500 | 500 mg | 0,8 | 7950 kg/m3 | | - | STAINLESS STEEL |
| WAM11 | 1 g | 1,0 | 7950 kg/m3 |  | 6 x 6 | STAINLESS STEEL |
| WAM12 | 2 g | 1,2 | 7950 kg/m3 | | 6 x 10 | STAINLESS STEEL |
| WAM15 | 5 g | 1,6 | 7950 kg/m3 | | 8 x 15 | STAINLESS STEEL |
| WAM110 | 10 g | 2,0 | 7950 kg/m3 | | 10 x 19 | STAINLESS STEEL |
| WAM120 | 20 g | 2,5 | 7950 kg/m3 | | 13 x 21 | STAINLESS STEEL |
| WAM150 | 50 g | 3,0 | 7950 kg/m3 | | 18 x 29 | STAINLESS STEEL |
| WAM1100 | 100 g | 5,0 | 7950 kg/m3 | | 22 x 38 | STAINLESS STEEL |
| WAM1200 | 200 g | 10 | 7950 kg/m3 | | 28 x 50 | STAINLESS STEEL |
| WAM1500 | 500 g | 25 | 7950 kg/m3 | | 38 x 66 | STAINLESS STEEL |
| WAM1K1 | 1 kg | 50 | 7950 kg/m3 | | 48 x 82 | STAINLESS STEEL |
| WAM1K2 | 2 kg | 100 | 7950 kg/m3 | | 60 x 105 | STAINLESS STEEL |
| WAM1K5 | 5 kg | 250 | 7950 kg/m3 | | 80 x 144 | STAINLESS STEEL |
| WAM1K10 | 10 kg | 500 | 7950 kg/m3 | | 100 x 184 | STAINLESS STEEL |
| WAM1K20 | 20 kg | 1000 | 7950 kg/m3 | | 128 x 224 | STAINLESS STEEL |
ACCREDIA Calibration of M1 class weights up to 50 kg
| | Code | Description |
| CM1K1 | ACCREDIA calibration of weight from 1mg to 1kg class M1 |
| CM1K5 | ACCREDIA calibration of weight from 2kg to 5kg class M1 |
| CM1K10 | ACCREDIA calibration of 10kg class M1 weight |
| CM1K20 | ACCREDIA calibration of 20kg class M1 weight |
| CM1K50 | ACCREDIA calibration of 50kg class M1 weight |
| CTDIV | Extra cost for single certificates (Net price for each certificate) |
| VPML | Initial mass verification in legal metrology. Service provided by the Milan Chamber of Commerce - Italy. |
 | EXP | Express sales service/calibration. It can be required for purchase orders (subject to stock availability check) of weights and weight sets including calibration and for calibration orders of weights and weight sets. Delivery within two working days for orders or material received by 12.00 a.m. (except in case of masses in calibration found out of tolerance). Cost of service: 25% net increase on calibration prices. |
COMPATIBILITY CONTROL SERVICE OF WEIGHTS AND MASSES
| | Code | Description |
| ICMP1 | Compatibility report with previous CIBE calibration. Price up to 3 masses. |
| ICMP2 | Compatibility report with previous CIBE calibration. Price from 4 to 29 masses. |
| ICMP3 | Compatibility report without previous CIBE calibration. Price up to 3 masses. * |
| ICMP4 | Compatibility report without previous CIBE calibration. Price from 4 to 29 masses. * |
NOTE: (*) In case the previous calibration has been performed by another laboratory, the relevant certificate must be provided.
LASER MARKING SERVICE FOR MASSES AND WEIGHTS
| | Code | Description |
 | LASERT1 | Standard CIBE laser marking (Format: ynnnn) for weights and masses of all accuracy classes, from 10 mg up to 20 kg. Price per single mass, up to two masses. |
| LASERT2 | Standard CIBE laser marking (Format: ynnnn) for weights and masses of all accuracy classes, from 10 mg up to 20 kg. Price per single mass, from 3 to 10 masses. |
| LASERT3 | Standard CIBE laser marking (Format: ynnnn) for weights and masses of all accuracy classes, from 10 mg up to 20 kg. Price per single mass, over 10 masses. |
CASES
| | Code | Description |
 | BM45100 | Plastic case for single weight from 1mg to 100g (weight excluded)
|
 | BM45200 | Plastic case for 200g single weight (weight excluded) |
| BM45500 | Plastic case for 500g single weight (weight excluded) |
| BM65K1 | Plastic case for 1kg single weight (weight excluded) |
| BM65K2 | Plastic case for 2kg single weight (weight excluded) |
| BM65K5 | Plastic case for 5kg single weight (weight excluded) |
| BM65K10 | Plastic case for 10kg single weight (weight excluded) |
 | BAK5 | Aluminium case for 5kg weight (Weight excluded) |
| BAK10 | Aluminium case for 10kg weight (Weight excluded) |
| BAK20 | Aluminium case for 20kg weight (Weight excluded) |
 | BW05 | Wooden case for a weight from 1mg - 500mg (weight excluded) |
| B9501LE | Wooden case for 1g weight Velvet interior(Weight exluded) |
| B9502LE | Wooden case for 2g weight Velvet interior(Weight excluded) |
| B9503LE | Wooden case for 5g weight Velvet interior(Weight excluded) |
| B9504LE | Wooden case for 10g weight Velvet interior (Weight excluded) |
| B9505LE | Wooden case for 20g weight Velvet interior (Weight excluded) |
| B9506LE | Wooden case for 50g weight Velvet interior (Weight excluded) |
| B9507LE | Wooden case for 100g weight Velvet interior (Weight exluded) |
| B9508LE | Wooden case for 200g weight Velvet interior (Weight excluded) |
| B9509LE | Wooden case for 500g weight Velvet interior (Weight excluded) |
| B9510LE | Wooden case for 1kg weight Velvet interior (Weight excluded) |
| B9511LE | Wooden case for 2kg weight Velvet interior (Weight excluded) |
| B9512LE | Wooden case for 5kg weight Velvet interior (Weight excluded) |
| B9513LE | Wooden case for 10kg weight Velvet interior (Weight excluded) |
| B9514LE | Wooden case for 20kg weight Velvet interior (Weight excluded) |
