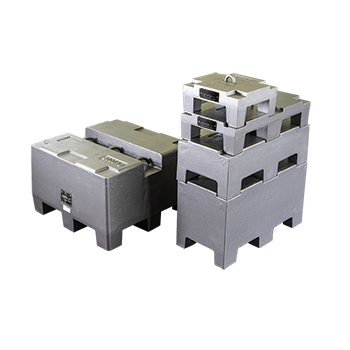

M1 PRECISION CLASS WEIGHTS FOR LARGE CAPACITY SCALES
|
|
| |
|
|
Heavy mass weights, compliant with the tolerances specified in the OIML-R111 recommendation for class M1, suitable for legal metrology applications and industrial use, particularly recommended for calibrating weighbridges and high-capacity systems. Easy to transport with a trolley or crane, suitable for stacking. They are equipped with a watertight side calibration bushing and feature high density for greater stability over time. The tolerances of accuracy class M1 allow these weights to be used for checking and calibrating class III scales and weights up to 10,000e.
Ideal for verifying weighing instruments under ISO quality standards. | | | MAIN FEATURES |
| | - TOLERANCES OF PRECISION CLASS M1
- MADE IN PAINTED STEEL WITH FERROUS FILLER (WM1PK500, WM1PK1000, WM1PK2000)
- MADE IN PAINTED CAST IRON (WM1VK100-WM1VK200-WM1VK500-WM1VT1-WM1VT2)
- INITIAL VERIFICATION STAMP AVAILABLE UPON REQUEST
- ACCREDIA (EA) CALIBRATION CERTIFICATE UPON REQUEST
- STACKABLE/EASILY TRANSPORTABLE WITH CART OR CRANE (only for cast iron weights)
- MINIMUM SIZE FOR STOCKING AND TRANSPORTING
- HIGH DENSITY AND ACCURATE STABILITY IN TIME
- HERMETICALLY SEALED LATERAL CALIBRATION SLOT.
CALIBRATION SERVICE Below you can see a preview of the calibration certificate. Please pay special attention to point 2. “Required information”, data to be communicated to the laboratory when requesting calibration.
|
|
|
MASSES FOR HIGH CAPACITY SCALES IN M1 CLASS
| | Code | Description |
| WM1VK100E | 100kg painted die-cast iron weight in M1 OIML class. Initial verification for legal-for-trade use not included (option upon request: VPML). |
| WM1VK200E | 200kg painted die-cast iron weight in M1 OIML class. Initial verification for legal-for-trade use not included (option upon request: VPML). |
| WM1VK500E | 500kg painted die-cast iron weight in M1 OIML class. Initial verification for legal-for-trade use not included (option upon request: VPML). |
| WM1VT1E | 1000kg painted die-cast iron weight in M1 OIML class. Initial verification for legal-for-trade use not included (option upon request: VPML). |
| WM1VT2E | 2000kg weight in painted cast iron, OIML M1 class. |

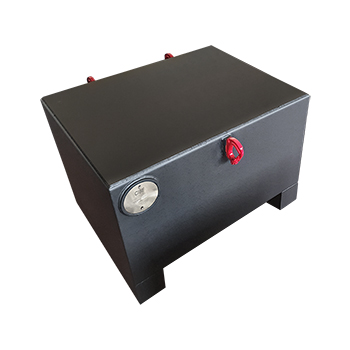

| WM1PK1000E | 1000kg painted steel weight in M1 OIML class. Initial verification for legal-for-trade use not included (option upon request: VPML). |
| WM1PK2000E | 2000kg painted steel weight in M1 OIML class. Initial verification for legal-for-trade use not included (option upon request: VPML). |
ACCREDIA CALIBRATION
| | Code | Description |
| CM1K100 | ACCREDIA calibration of weight of 100kg class M1 |
| CM1K200 | ACCREDIA calibration of weight of 200kg class M1 |
| CM1K500 | ACCREDIA calibration of class M1 weight of 500kg |
| CM1K1000 | ACCREDIA calibration of weight of 1000kg class M1 |
| CM1K2000 | ACCREDIA calibration of weight of 2000kg class M1 |
| CTDIV | Extra cost for single certificates (Net price for each certificate) |
| VPML | Initial mass verification in legal metrology. Service provided by the Milan Chamber of Commerce - Italy. |
COMPATIBILITY CONTROL SERVICE OF WEIGHTS AND MASSES
| | Code | Description |
| ICMP1 | Compatibility report with previous CIBE calibration. Price up to 3 masses. |
| ICMP2 | Compatibility report with previous CIBE calibration. Price from 4 to 29 masses. |
| ICMP3 | Compatibility report without previous CIBE calibration. Price up to 3 masses. * |
| ICMP4 | Compatibility report without previous CIBE calibration. Price from 4 to 29 masses. * |
NOTE: (*) In case the previous calibration has been performed by another laboratory, the relevant certificate must be provided.
